Moxa PT-7728-PTP série Agrandir l'image

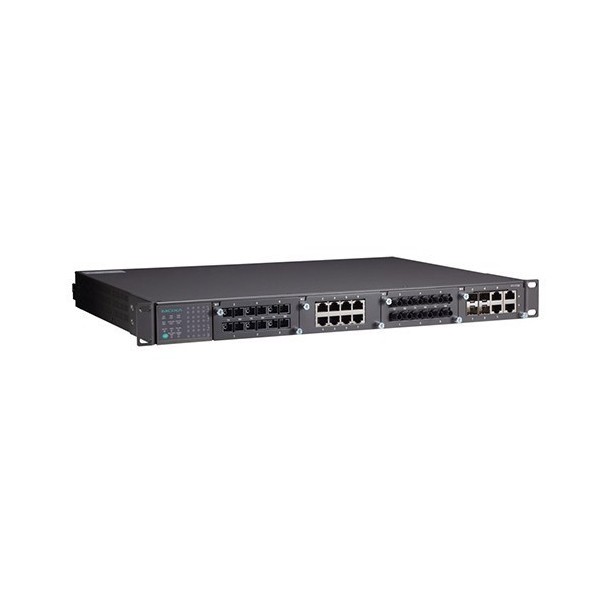

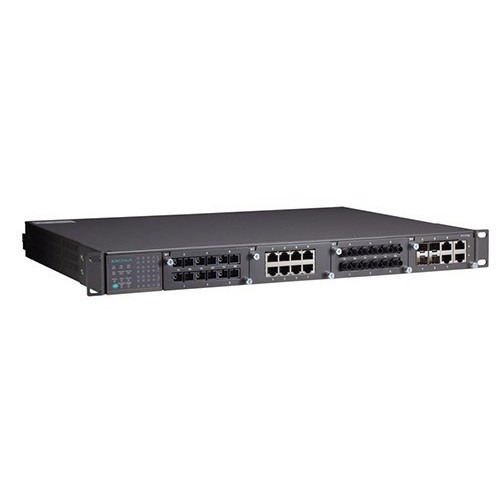

Moxa PT-7728-PTP-F-24-HV

PT-7728-PTP-F-24-HV

Switch Ethernet Industriel IEC 61850-3, manageable et modulable, câblage face avant, 24 ports 10/100TX Fast Ethernet ou 100FX + 4 ports Gigabit 10/100/1000Mbps, 24 VDC et 88-300 VDC ou 85-264 VAC

Plus de détails

Documentation

En savoir plus

► Moxa PT-7728-PTP série
► Commutateurs Ethernet PSE (PRP / HSR) rackable IEEE 1588v2 Layer 2, 28 ports manageable, redondant et modulable (6 slots)
► PTP IEEE 1588v2 avec horodatage matériel pour une synchronisation temporelle précise des réseaux
► Compatible IEC 61850-3 et IEEE 1613 (sous-stations énergétiques)
► Compatible IEC 62439-3 Clause 4 (PRP) et Clause 5 (HSR)
► Serveur MMS intégré basé sur la modélisation de données de commutation IEC 61850-90-4 pour Power SCADA
► Compatible IEC 61850-3, IEEE 1613 (sous-stations énergétiques), and EN50121-4 (applications ferroviaires)
► 24 x ports 10/100Tx ou 100FX + 4 ports Gibabits modulable
► Alimentation redondante : 24 VDC et 88-300 VDC ou 85-264 VAC)
► 1 sortie relais de 1A à 24V en continu
► Protocoles : IGMP V1/V2/V3 device, GMRP, GVRP, SNMP V1/V2C/V3, DHCP Server/Client, DHCP Option 82, BootP, TFTP, SNTP, SMTP, RARP, RMON
► Température de fonctionnement : -40 à 85 °C
► Garantie 5 ans

Modèles disponibles :

► PT-7728-PTP-F-24-HV : câblage face avant, 2 alimentations isolées (24 VDC et 88-300 VDC ou 85-264 VAC)
► PT-7728-PTP-R-24-HV : câblage face arrière, 2 alimentations isolées (24 VDC et 88-300 VDC ou 85-264 VAC)
► PT-7728-PTP-F-48 :câblage face avant, 1 alimentation isolée (48 VDC),
► PT-7728-PTP-R-48 : câblage face arrière, 1 alimentation isolée (48 VDC),
► PT-7728-PTP-F-48-48 : câblage face avant, 2 alimentations isolées (48 VDC),
► PT-7728-PTP-R-48-48 : câblage face arrière, 2 alimentations isolées (48 VDC),
► PT-7728-PTP-F-HV : câblage face avant, 1 alimentation isolée (88-300 VDC ou 85-264 VAC)
► PT-7728-PTP-R-HV : câblage face arrière, 1 alimentation isolée (88-300 VDC ou 85-264 VAC)
► PT-7728-PTP-F-HV-HV : câblage face avant, 2 alimentations isolées (88-300 VDC ou 85-264 VAC)
► PT-7728-PTP-R-HV-HV : câblage face arrière, 2 alimentations isolées (88-300 VDC ou 85-264 VAC)
► PT-7728-PTP-F-24 : câblage face avant, 1 alimentation isolée (24 VDC),
► PT-7728-PTP-R-24 : câblage face arrière, 1 alimentation isolée (24 VDC),
► PT-7728-PTP-F-24-24 : câblage face avant, 2 alimentations isolées (24 VDC),
► PT-7728-PTP-R-24-24 : câblage face arrière, 2 alimentations isolées (24 VDC)

Caractéristiques

Ports LAN24+4G ports combo
Ports SFPOui
GigabitOui
AdministrableOui
MontageRack 19
Alimentationdouble : 24 VDC / 88-300 VDC ou 85-264 VAC
IEC 61850-3Oui
