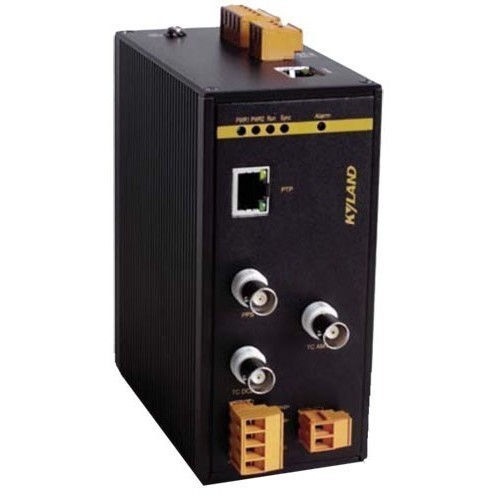

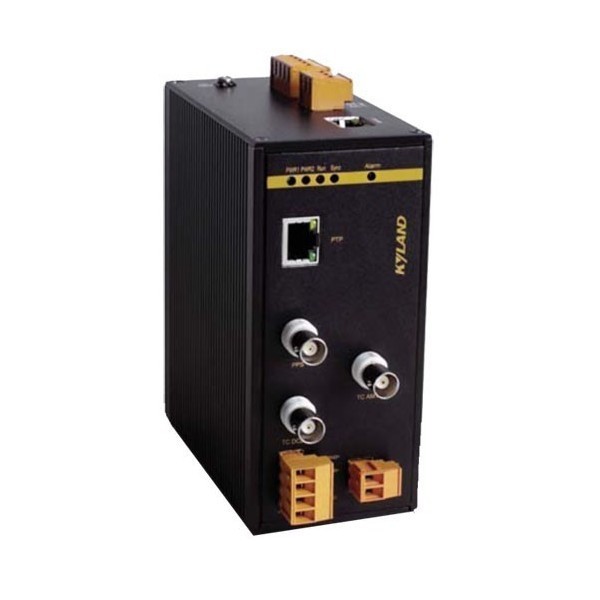

Kyland PTC1000

PTC1000

Convertisseur horloge conversion PTP vers IRIG-B et PPS (Pulse Per Second), 1 100Base-FX SC/ST/FC ou 1 10/100Base-TX RJ45, supporte IEEE 1588v2, ITU-T.G.8261/G.8262 SyncE, -40 à 85 °C

Plus de détails

Documentation

En savoir plus

► Kyland PTC1000
► Convertisseur horloge supporte 1 port 10/100TX
► 1 entrée 100Base-FX SC/ST/FC ou 1 entrée 10/100Base-TX RJ45
► 1 sortie PPS, 2 sorties IRIG-B TTL, 2 sorties de modulation IRIG-B AM et 1 sortie IRIG-B RS422
► Prend en charge la synchronisation avec IEEE1588v2, précision de ± 100 ns
► Protocoles : PTP, IRIG-B;Telnet, HTTP, SNMPv1/v2;FTP;
► Standards : IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE1588v2, ITU-G.8261/G.8262, IEEE Std C37.118-2005
► Prend en charge la synchronisation horaire PPS et la synchronisation de temps IRIG-B
► Température de fonctionnement : -40 à 85 °C
► Garantie 5 ans
► Certifié IEC61850-3 & IEEE1613 CE, FCC

Pour commander son modèle :

Exemple : PTC1000-M-1310-5-SC-220AC/DCW
            1 multi mode 1310nm 5km ports fibre avec connecteur SC, alimentation 85-264VAC/77-300VDC

PTC1000 - ______ - ________ - _________ - ___

                  Ports -    Distance -  Connecteur - Alimentation

Ports

T = 1 10/100Base-TX RJ45 port
M = 1 100Base-FX multi mode port
S = 1 100Base-FX single mode port

Distance de fibre

1310-5 = 1310nm, 5km
1310-40 = 1310nm, 40km
1310-60 = 1310nm, 60km
1550-80 = 1550nm, 80km

Connecteur fibre : SC / ST / FC

Alimentation : 24DC = 18-36VDC, double entrée redondante
220AC/DCW = 85-264VAC/77-300VDC, entrée unique
