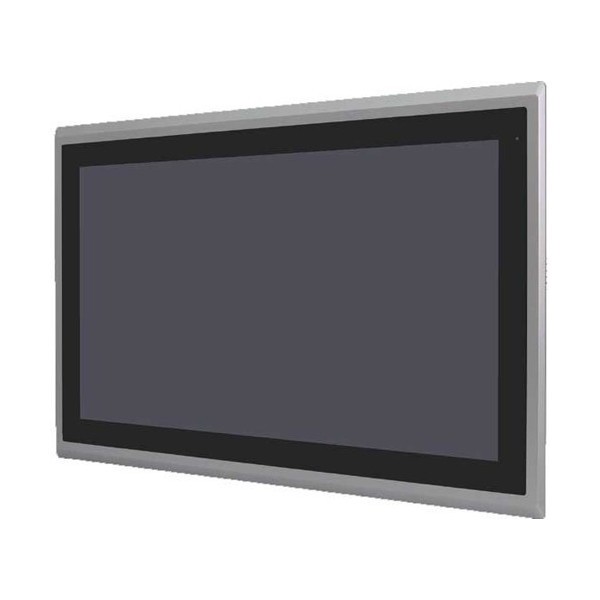

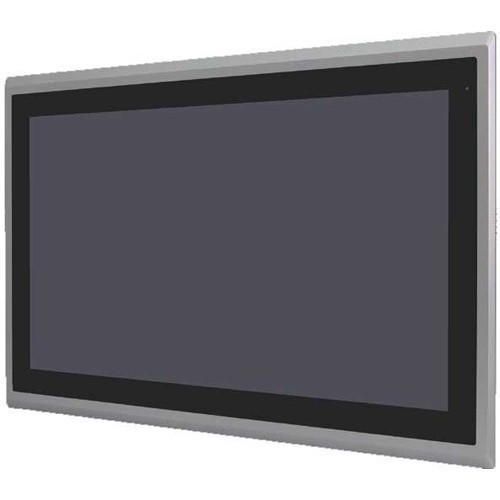

ARCHMI-918AP Agrandir l'image

Aplex ARCHMI-918AP

ARCHMI-918AP

HMI écran LCD-TFT 18.5" WXGA, sans ventilateur, CPU Intel 6th Gen. Core i3/i5 (option), 4GB DDR3 RAM, écran Projected Capacitive touch, 9~36V DC, châssis en aluminum, USB, IP66 frontal

Plus de détails

Documentation

En savoir plus

► Aplex ARCHMI-918AP
► HMI au graphisme puissant et amélioré, sans ventilation, châssis aluminium moulé sous pression
► Écran LCD TFT 18.5" WXGA, résolution 1366 x 768 pixels
► Luminosité 300cd/m2
► Processeur Intel 6th Gen. Core i3 / i5 en option, 1 x 260Pin SO-DIMM DDR4 jusqu'à 16GB 2400MHz
► Mémoire : 1 baie SATA 2.5" HDD pour SATA3 (accès facile)
► Ports : 2x LAN GbE, 2x USB 3.0 type A, 1x DB-9 RS-232/422/485, COM1 (Default RS-232), 1x RS-232 DB-9, COM2, 1x sortie Audio
► Options : 2xRS-232 DB-9+1xMini-PCIe slot via TB-528C2ME1 / 2x CAN bus via TB-528CAN2 / 2x USB 2.0 type A + 1x Mini-PCIe + 1x RS-232 DB-9 + 1x bouton Power via TB-528C1U2P1 / 2x USB 2.0 type A+ via TB-528U2, batterie UPS  21W/10.8V/1.95Ah(3S1P)
► Protection IP66 en frontal
► Températures de fonctionnement 0 à 50 °C
► Alimentation 9 à 36 VDC
► Dimensions : 410 x 310 x 54.67 mm
► OS : Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 7 Pro(FES), Windows 7 Ultimate(FES), Windows Embedded 8 Standard, Windows Embedded 8.1 Industry Pro, Windows 10 IoT Enterprise 2015LTSB

Modèles disponibles :
ARCHMI-918A-01 : écran Resistive touch screen
ARCHMI-918AP-01 : écran Projected Capacitive touch screen

Caractéristiques

Ports LAN2 ports
Ports USBOui
Interface SérieRS-232/422/485
Alimentation9-36V DC
Taille d'écran18.5 pouces
CPUIntel 6e Core i
