Aplex ARCHMI-821PH

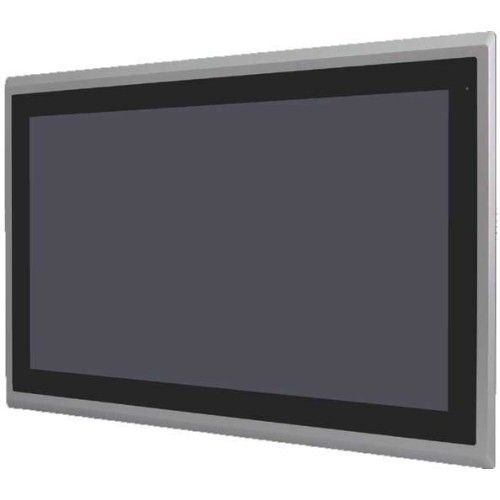

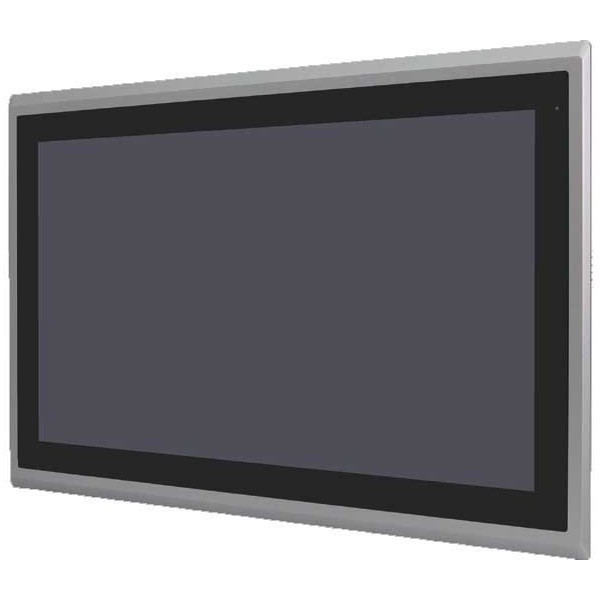

ARCHMI-821PH

HMI 21.5" Full HD sans ventilateur,  Haute luminosité 1,000 cd/m2, CPU Intel N2930 1.83GHz, 4GB DDR3 RAM, écran Projected capacitive touch, 9~36V DC, châssis en aluminum

Plus de détails

Documentation

En savoir plus

► HMI nouvelle génération basé sur PC à faible consommation d'énergie
► Écran LCD TFT 21.5", résolution 1920 x 1080 pixels
► Luminosité 1000cd/m2
► Processeur Intel Celeron N2930 (1.83GHz) / option Atom E3845 (1.91GHz) option
► Mémoire : 1 baie SATA MO-297 SSD (accès facile)
► Extension de mémoire : carte SD, jusqu'à 32GB
► Ports : 2x USB 3.0 type A, 1x RS-232 DB-9(COM2)/1xDB-9 RS-232/422/485 (Default RS-232) (COM1) Option : 2x RS-232 DB-9+1x Mini-PCIe via TB-528C2ME1 et 2x CAN bus via TB-528CAN2/ 2x USB 2.0 type A via TB-528U2/ 2x USB 2.0 type A+ 1x Mini-PCIe slot+1x RS-232 DB-9 via TB-528C1U2/UPS Batterie 21W/10.8
► Protection IP65 en frontal
► Températures de fonctionnement 0 à 50 °C
► Alimentation 9 à 36 VDC
► Dimensions : 557 x 362 x 64.8 mm
► OS : Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 7 Pro(FES), Windows 7 Ultimate(FES), Windows Embedded 8 Standard, Windows Embedded 8.1 Industry Pro, Windows 10 IoT Enterprise 2015LTSB

Modèles disponibles :

► ARCHMI-821-01 : 2GB DDR3L RAM, Resistive touch screen 350cd/m2
► ARCHMI-821P-01 : 2GB DDR3L RAM, Projected capacitive touch screen 350cd/m2
► ARCHMI-821H-01 : 4GB DDR3L RAM, Resistive touch screen, High brightness 1,000nits LCD
► ARCHMI-821PH-01 : 4GB DDR3L RAM, Projected capacitive touch screen, High brightness 1,000nits LCD
