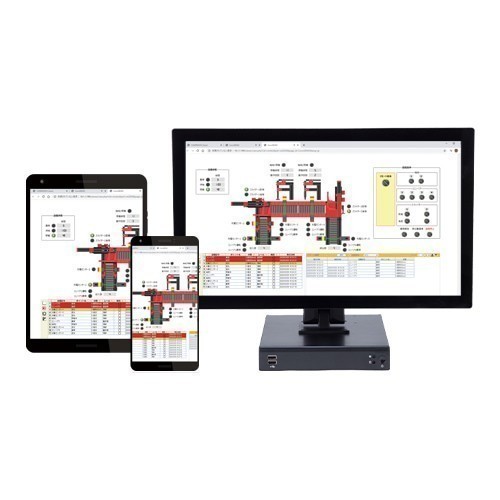

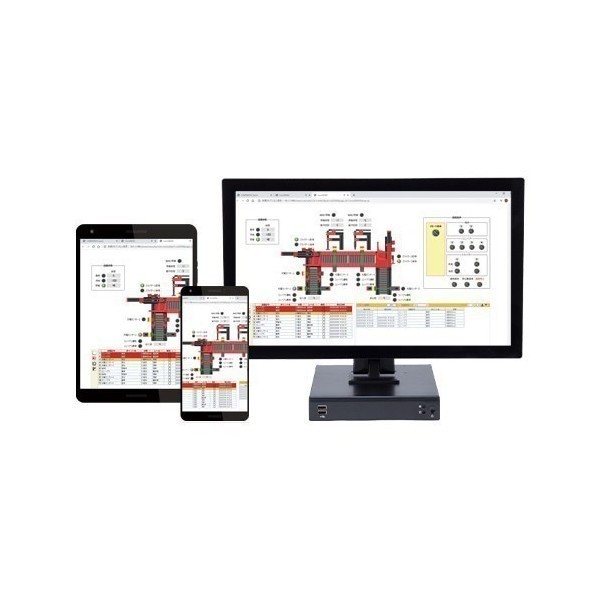

Contec CONPROSYS HMI System (CHS)

Référence CHS

Logiciel HMI/SCADA basé sur la technologie HTML5

Surveillance de plusieurs appareils à tout moment et en tout lieu
Développement de système sans programme
Communication transparente avec les dispositifs de passerelle CONPROSYS M2M et la série CONPROSYS nano
Création rapide d'écrans de surveillance parlants
Compatible avec MQTT (courtier MQTT inclus)
Environnement d'exécution universel pouvant être installé n'importe où
Le site de démonstration et la version d'essai gratuite du logiciel sont disponible
Windows Server 2012/2016/2019; Windows 10 Pro (limité à des fins d'essai)

	Trial Software	Project 1	Project 2	Project 5	Project 10	Project 25	Project 50
Maximum Projects	1	1	2	5	10	25	50
Subscription Price (US$/Year, excl. VAT)	Free	$1,365	$2,595	$6,140	$10,910	$23,865	$40,910
Maximum Pages per Project	3	20	40	100	200	500	No limit
Maximum Devices per Project	1	2	4	10	20	50	No limit
Maximum Data Tags per Project	16	300	600	1500	3000	7500	No limit
Order	-	Order	Order	Order	Order	Order	Order
Installer	Download
Limitations	This software is a subscription on-premise package that runs on Windows Server, and can runs on Windows 10 Pro for trial purpose. This installer is also a trial software. The trial software stops data processing after running 1 hour. One license is required for each installation. The virtual machine system also requires a license. If you need to add more servers running in parallel to a system, each additional server will only cost 30% of the selected certificate price. The "Maximum Data Tags" only limits the total number of actual I/O channels or PLC registers, the internal variables are not limited. For "No limit" items, it means that there is no limit to the number in the software, but the number will still be limited by the server's hardware resources (such as CPU performance, memory, storage space, network bandwidth, etc.) We will provide software updates (bug fixes) and upgrades (improvements / enhancements) during the valid period of the license. This product does not have a backup CD. In principle, please use CONTEC Discussion Forum for support.
