3onedata IES6300 série Agrandir l'image

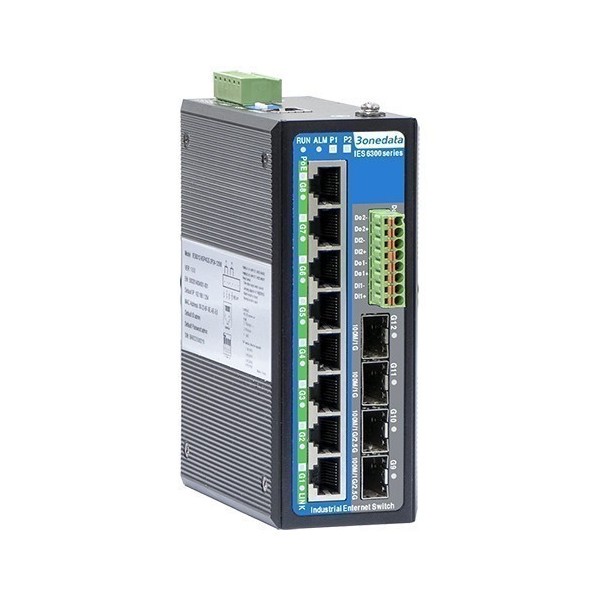

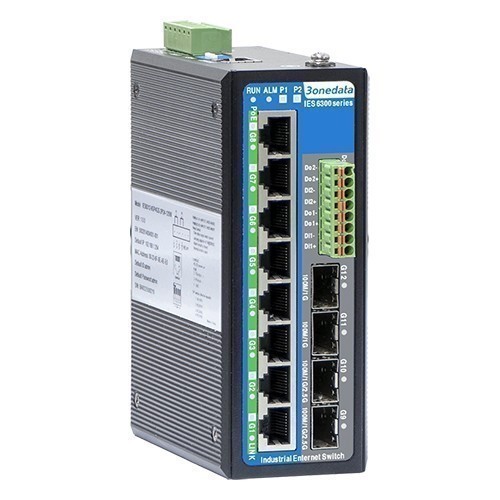

3onedata IES6300-8GP2GS2HS-2P48-240W

IES6300-8GP2GS2HS-2P48-240W

Commutateur Ethernet industriel L2 manageable 8 ports PoE, budget 240W, 2 SFP Gigabit, 2 ports 2.5GigE, boîtier métal IP40, double alimentation 48V DC, températures -40 à 75 °C

Plus de détails

Documentation

En savoir plus

  • Commutateur Gigabit Ethernet industriel manageable L2 à 10/12 ports (PoE ou E/S en option)
  • 2 slots SFP 2,5 G, 2 slots SFP Gigabit (en option), 8 ports cuivre Gigabit (PoE en option), 2 DI et 2 DO (en option)
  • Technologie Ring brevetée, avec un anneau unique, un anneau de couplage, une chaîne, une double prise d'origine
  • Temps de récupération automatique en cas de panne de réseau <20 ms
  • 4 alimentations en option : PoE 24 VDC, PoE 48 VDC, 12 ~ 48 VDC et 220 VAC/DC
  • Consommation électrique PoE maximale 120W @ 24VDC, et 240W @ 48VDC
  • Températures de fonctionnement -40 à 75 °C

Modèles disponibles :

Available Models

Gigabit RJ45 LAN Port

SFP Slot

I/O Port

PoE

Power

Power Supply

Non-

PoE

PoE

Gigabit

2.5G

Input Range

Quantity

IES6300-8GT2GS2HS-2P48

8

2

2

12-48VDC

2

IES6300-8GP2GS2HS-2P24-120W

8

2

2

120W

24VDC

2

IES6300-8GP2GS2HS-2P48-240W

8

2

2

240W

48VDC

2

IES6300-8GT2GS2HS-P220

8

2

2

220VAC/DC

1

IES6300-8GT2HS-2P48

8

2

12-48VDC

2

IES6300-8GP2HS-2P24-120W

8

2

120W

24VDC

2

IES6300-8GP2HS-2P48-240W

8

2

240W

48VDC

2

IES6300-8GT2HS-P220

8

2

220VAC/DC

1

IES6300-8GT2GS2HS-2DI2DO-2P48

8

2

2

2

12-48VDC

2

IES6300-8GP2GS2HS-2DI2DO-2P48-240W

8

2

2

2

240W

48VDC

2

Caractéristiques

Ports LAN8 ports
Ports SFP2
Ports 2.5G2
PoEOui
Alimentation48V DC
Températures-40 à 75 °C
ProtectionIP40
